Home > ISO Tank Parts > Valves > Foot Valves > TWINCO™ > PEROLO 3" 45° TWINCO FOOT VALVE
	Our Price: $1,462.02 Product Code: FVTC300-45D-SS-01 Qty:

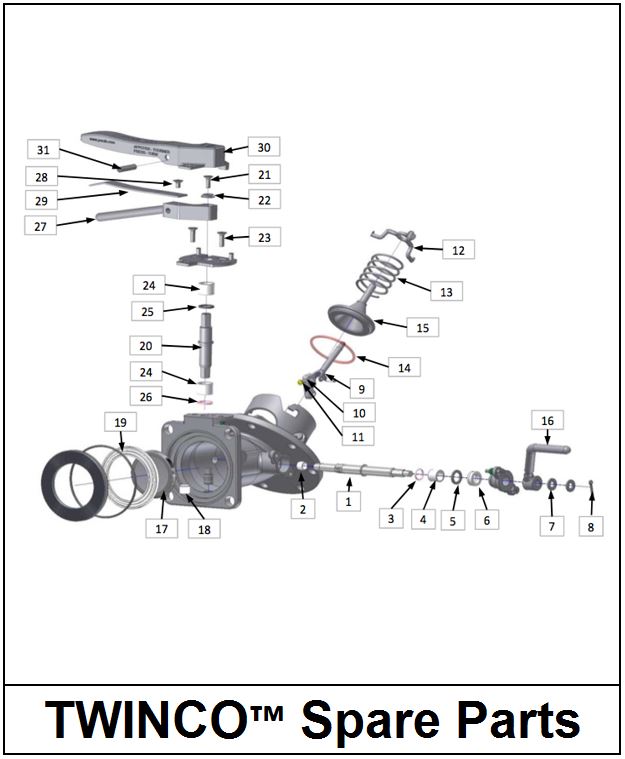

Description Sheet Information   MPN VTCX34SCR The TWINCO™ 3” 45° bottom discharge incorporates one butterfly valve and one footvalve in a single piece compact body. The TWINCO™ 3” 45° design saves space and reduces cost of ownership when used on tank containers, road tankers, rail tank cars and static tanks for loading and unloading liquids while preventing any risk of leakage. MAINTENANCE SHEET SPECIFICATION INSTALLATION MAINTENANCE SHEET FOR OLDER VERSIONS For Spare Parts Click Here: Features • Single piece design • Inlet flange angled at 45°. • Full 316L stainless steel construction • Reduced length: 153 mm • Reduced weight: 9.5kg. • Reduced cost of ownership • Valve mechanism in the tank. • Shear groove breaking system. • Design temperature: -40°C +190°C. • Working pressure: 4 bar. • Test pressure: 6 bar. • Also available with 30° angle • Heating box option available. • Remote control lever option available • Fusible link option available • AAR sealing option available • HALAR® coating and HASTELLOY® insert options available for very corrosive products. • Conforms to IMDG, ADR and RID standards • Bureau Veritas approved Related Items PEROLO 3" 45° TWINCO FOOT VALVE - SPLINED SHAFT Our Price: $1,479.87 Add
