PEROLO 2" TANKFLY BSP B-FLY VALVE MK2
PEROLO 2" TANKFLY BSP B-FLY VALVE MK2

Our Price: $468.35


Product Code: BFTF200B-BF5S-SS-01
Qty:

Description Sheet Information

MPN TT5X7T1CS11

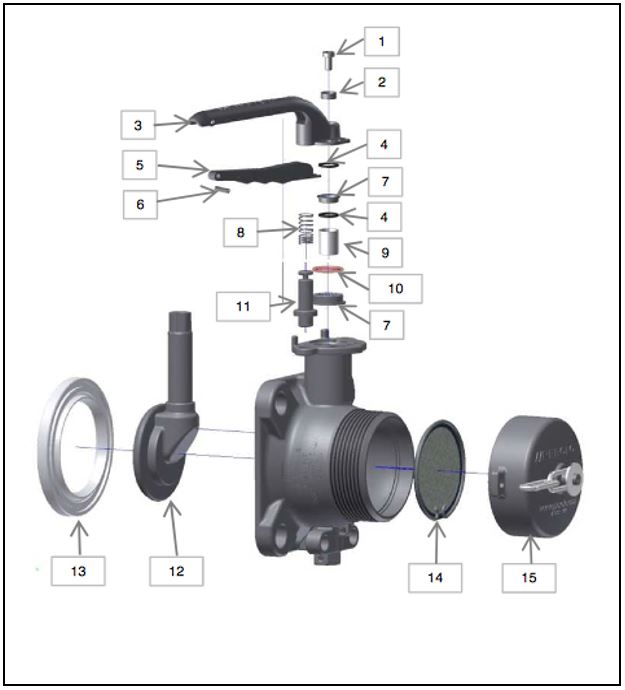

The 2'' TANKFLY™ MKII threaded butterfly valve is designed to be used as an air inlet/outlet valve.
Made of 316L/1.4404 stainless steel, the 2'' TANKFLY™ MKII valve is applicable to tank containers, rail tanks, road tankers and static tanks dedicated to transporting or storing chemicals and liquid foodstuff.
Features

• Nominal diameter: 51mm (2”)
• Weight : 1.4 kg
• Container side flange: 4 x slotted holes Ø11 on a PCD100 to 103.5
• Outlet connection : 2” BSP
• MAWP : 7 bar
• Test pressure : 10.5 bar
• Working Temperature : -20°C +130°C
• Full 316L/1.4404 stainless steel construction
• 2'' BSP Connection
• ¼ turn operation
• FEP/PTFE seals
• Easy filter change

Spare Parts & Accessories
10MM X 35MM STUD KIT - QTY OF 4 - SS
Our Price: $7.44

Add Free Shipping
10MM X 35MM STUD KIT - QTY OF 4 - SS
