DN500 MANLID GASKET - CYCLETIGHT TYPE 6 - 20-3/4" X 21-5/8" - VSP#9259
DN500 MANLID GASKET - CYCLETIGHT TYPE 6 - 20-3/4" X 21-5/8" - VSP#9259

Our Price: $289.84


Product Code: GMD500-9259-CT6-10
Qty:

Description Technical Specs Sheet Information



VSP# 9259

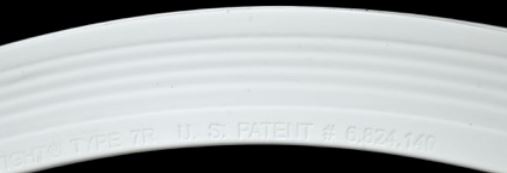

Semi-metallic expanded PTFE gasket designed for use in general purpose tank car manway dome lids. Patented construction allows the CycleTight® gasket to fit securely into the manway cover to provide low assembly torque and multiple reuses across a broad range of chemical services.
Features
VSP’s patented design combines an engineered corrugated 316 stainless steel insert embedded within an expanded PTFE matrix.
CycleTight® provides dynamic response to railcar vibration while also supporting multiple trips.
ePTFE Compared to Conventional Gaskets
Broadest range of chemical resistance
High purity/Non-contaminating
Lower stress to seal than conventional gaskets
Lower relaxation & torque loss
SS Core Compared to Conventional Gaskets
Dynamic response to vibration & thermal cycles
Protects against cut through, cracks, & distortion
Spring action allows for multiple trips
